MODEL:
Product Description
|

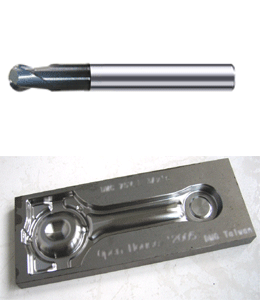

Milling sample of MX 900 Series |
End mills : R3 2 Flutes ( HERB2-060-18 )
Work material : SKD61 ( HRC52 )
Spindle Speed N:15000 min-1 ( Vc= 141 m/min )
Table Feed F=7500 mm/min ( Fz=0.25 mm/flutes )
Milling amount (Depth of cut Ap=0.4 mm pitch Ae =1.6 mm )
Milling Way :Contour line roughing
Milling time : Total 22 min ( 11min X 2 parts )
Coolant : Air
Abrasion Amount : 0.01 mm
